Min. Laela:1 Piece/Pieces
Setšoantšo sa No.: G104X1-L04

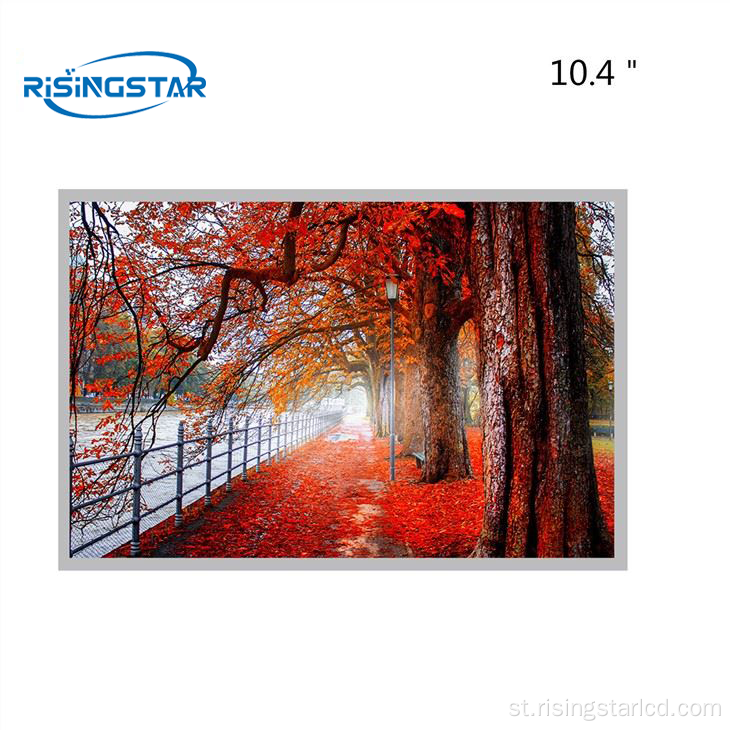

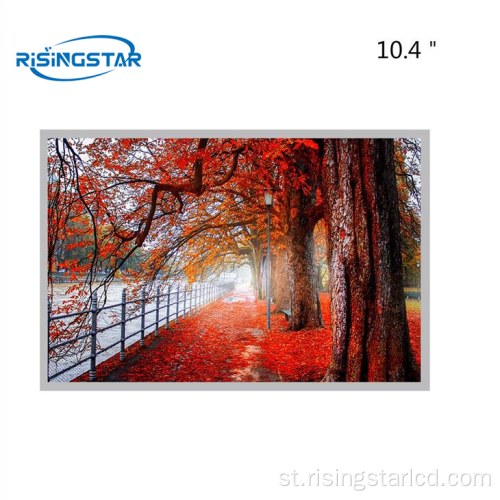

10.4 "Innolux G104X1-L04 BrightNect 500nits khanya ea letsatsi ea letsatsi ea TFS LCD.
Nahana ka theknoloji ea boleng bo botšo.
Lefifi le lefifi, leseli lea khanya.
Liquere tsa Selekane sa Liindasteri tsa Liindasteri, ho netefatsa boleng ba kristale ea metsi.
NTSC 72% Colour Coat Cleater, Khutsa 'mala o ruruhileng oa litšoantšo.
Boholo bo lekanang: G104Acj-L01, g104xce-l01, g104V1-t03
| brand | Innolux | Model name | G104X1-L04 |
| size | 10.4 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 [XGA] 123PPI | Pixel configuration | RGB vertical bar |
| Display size | 210.4 × 157.8 mm (H×V) | Surface treatment | Fog surface |
| Visual size | 215.4 × 161.8 mm (H×V) | Contrast Ratio | 1000:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 500 cd/m² (Min.) or customized | Outline dimension | 225.5 × 176.3 × 9.2 mm (H×V×D) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 6/8-bit) ,terminal, 30 pins | ||
| work environment | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C |
